Overview
This article explains the different tabs within a vehicle profile.

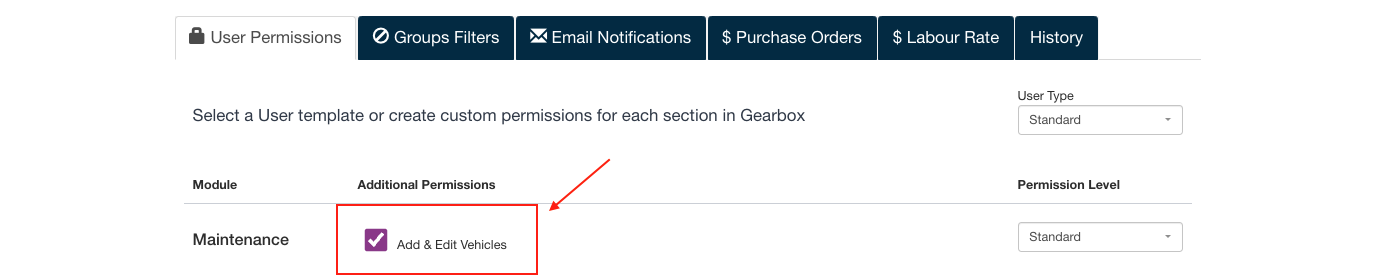

In order to add & edit vehicles you need to have the user permission to do so
Asset/Vehicle Record Overview - User Permission
The Information Tab provides the mandatory fields, most commonly used fields and the total life running costs for a vehicle/asset.

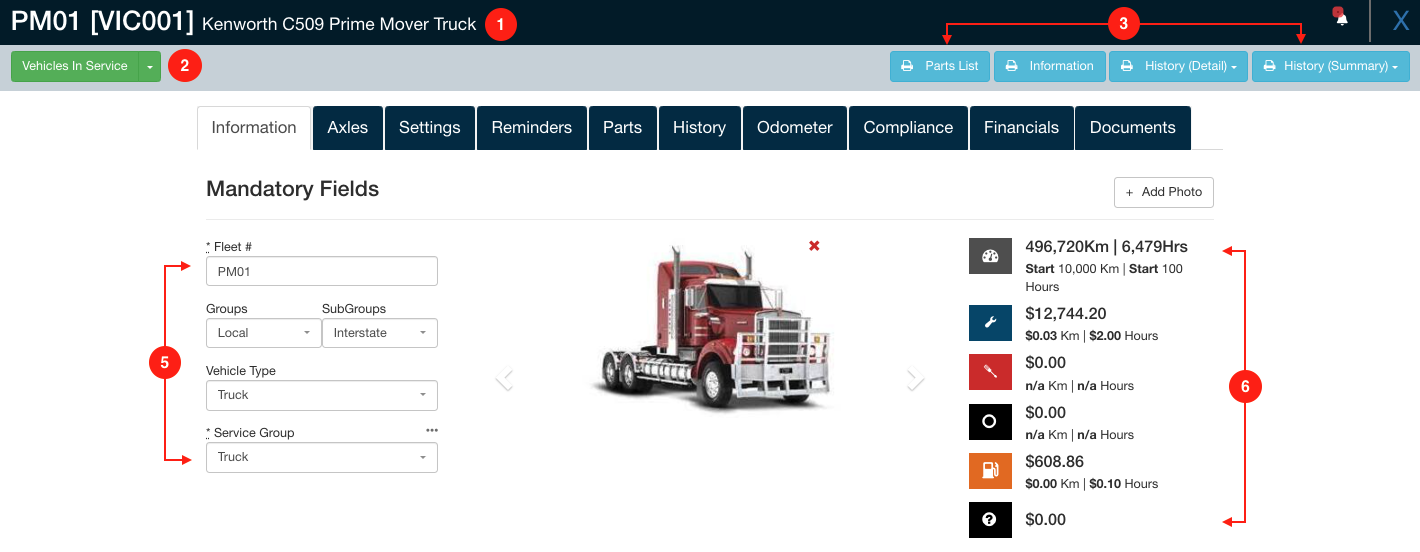

Asset/Vehicle Record Overview - Information Tab
Vehicle Identification (1) [Fleet #] [Rego] [Make] [Model] [Configuration/Specification] [Vehicle Type]
Vehicle Service Status (2)
uses the vehhicle allocation status in Gearbox to identify the availability of your fleet to allocators. Available status' include: In Service, Out of Service - Planned, Out of Service - Unplanned, Parked, Pending, Sold
Vehicle Specific Reports (3) for Parts
Lists, Informations, History (Detail), or History (Summary) PDF reports.
History (Summary) allows users to download or email 3, 6, 12, 24
month, or full maintenance history reports. Full history is also available in XLSX.
Add Photo (4) upload images of the asset/vehicle, to be displayed in the centre of the page.
The Documents module must be active on the subscription in order to utilise this function
Mandatory Fields (5) for the Fleet # as a unique
identifier for the asset. Use Groups & Subgroups to filter your
asset throughout Gearbox by using divisons, locations, cost centres or other business grouping. Assign an asset to a Vehicle Type (ie.
truck, trailer, excavator, etc...), assign an asset to a Service Group
used to define assets service intervals, tolerances and jobcard items.
* Indicates mandatory fields in order for the record to be saved
Vehicle Metrics (6) identifies the assets whole life maintenance costs for services, repairs,
tyres, fuel and other. The current max odometer and hour
meter readings are also displayed.

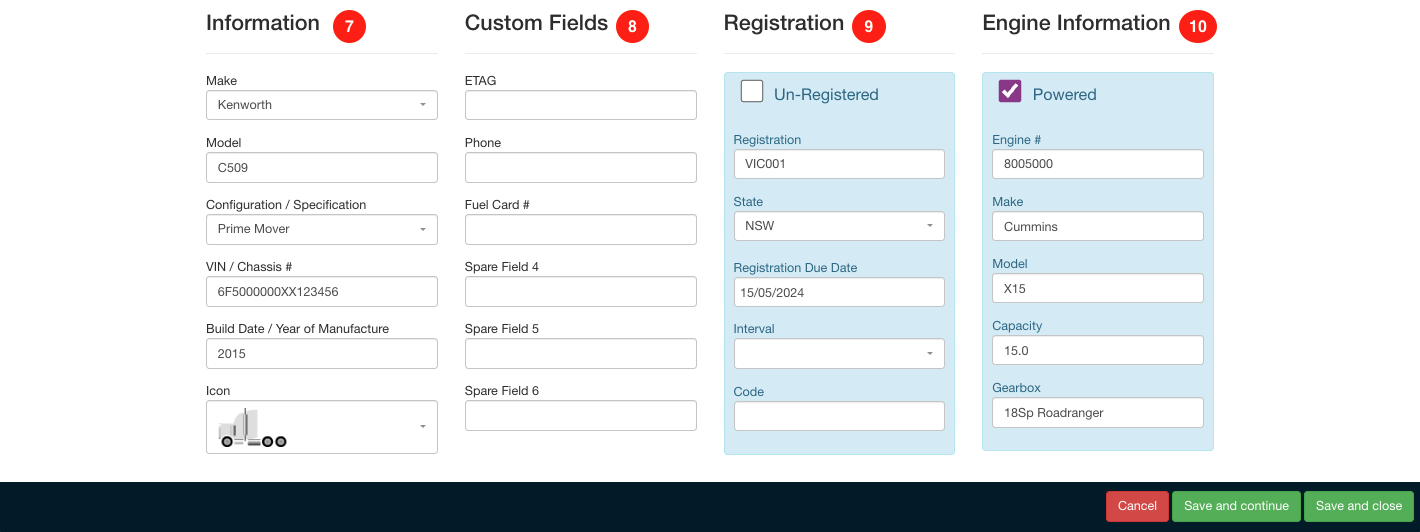

Information Fields (7) for commonly referenced information of make, model, configuration/specification, vin and build date. You can also set the vehicle icon.
Custom Fields 1-6 (8) labels can be changed via the Settings page by searching 'vehicle spare field' under System Parameters. You can use these spare field for Etag numbers, Phone, Fuel card numbers.
Registration (9) The registration due field is one of the elements that contribute to the vehicle traffic light status. Tick the un-registered field to prevent a red traffic light appearing for unregistered vehicles.
Engine Information (10) Check this powered checkbox for all powered units. This is to identify trucks/trailers in compliance (NHVAS) reports. Enter applicable engine information below.
Axles Tab

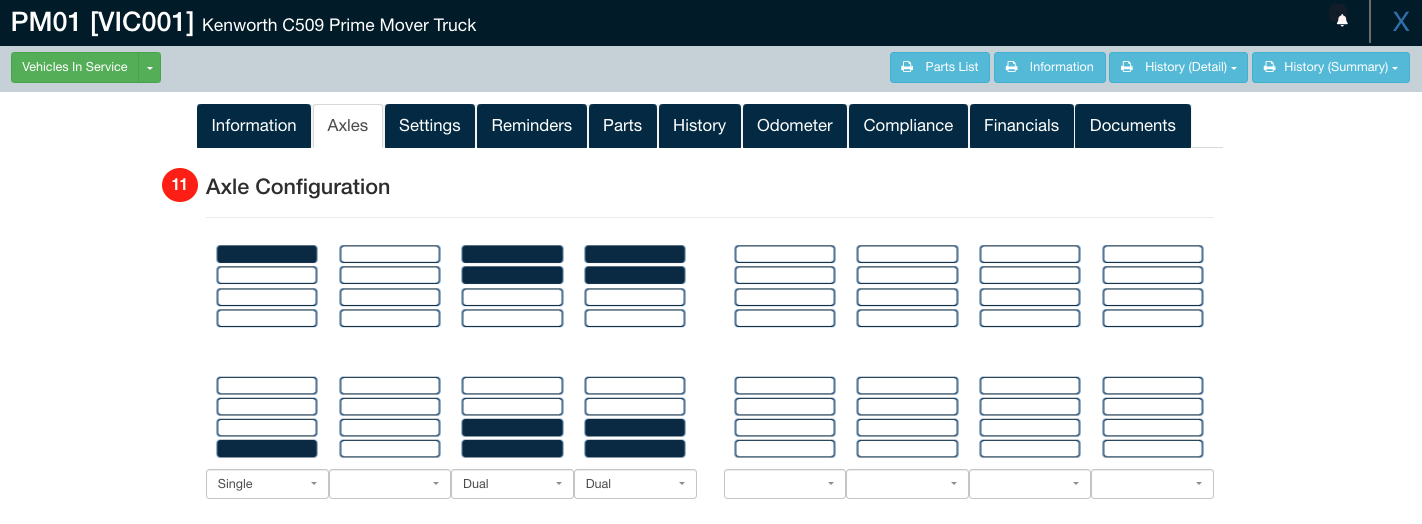

Axle Configuration (11) Configure a total 8 axle groups for the asset/vehicle's with the following selections; none, single, dual, triple, quad

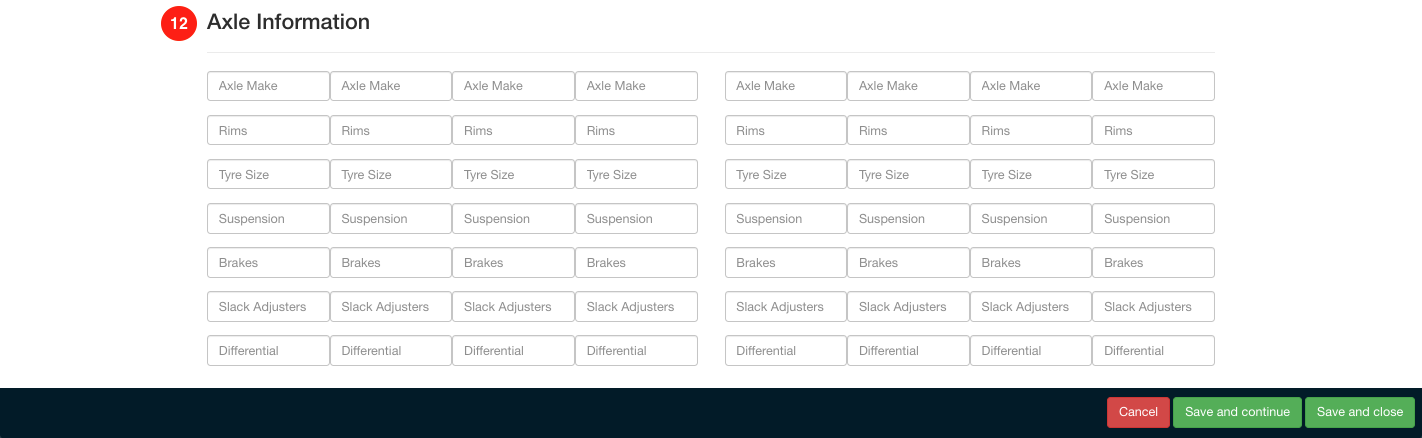

Axle Information (12) Record axle make, rims, tyre size, suspension, brakes, slack adjustments and differential if you have a variety of assets and require this level of detail to be easily available.
Asset/Vehicle Record Overview - Axles Tab
Settings Tab

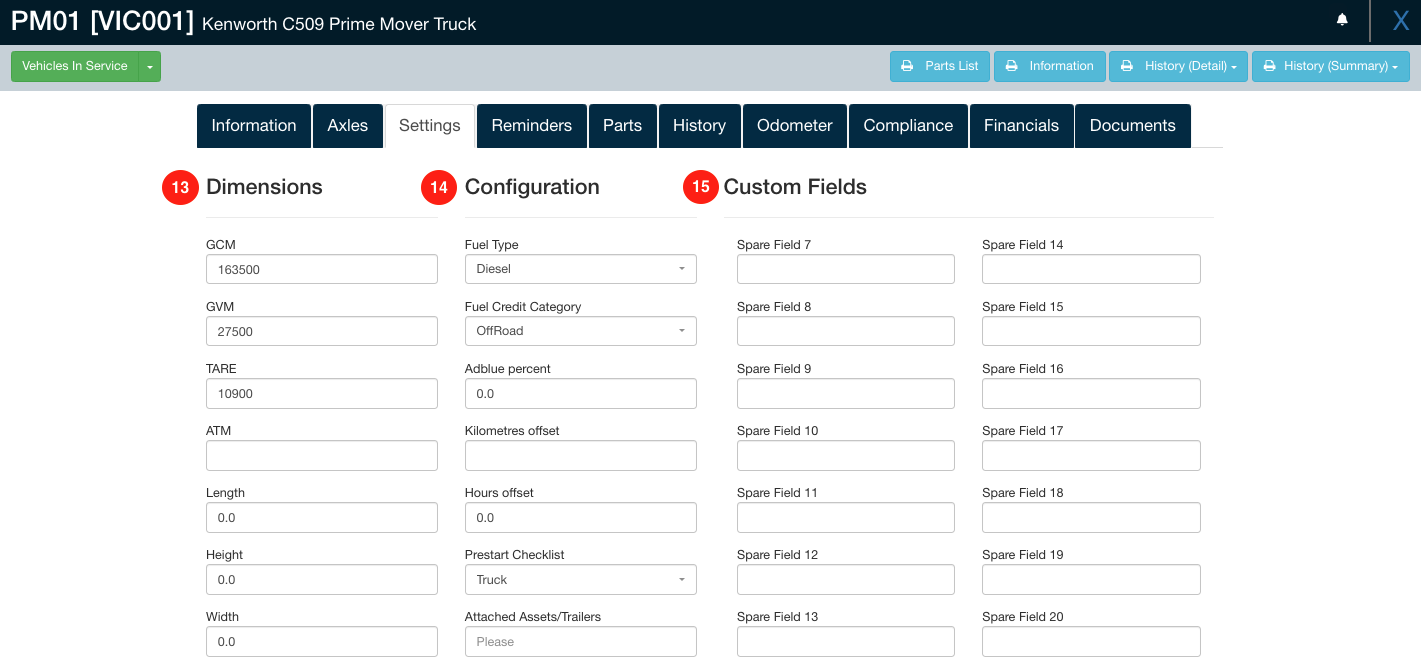

Dimensions (13) Configure the asset/vehicle's dimension information in the following fields; GCM, GVM, TARE, ATM, length, height, width, volume, pallets,
Configuration (14) Fuel Types, the Fuel Credit Category relates to OnRoad, OffRoad, or Auxiliary this is used when generating the
Fuel Credit Report, Adblue Percentage,
Vehicle Offset Configuration can be configured in the Mileage & Hours Offset boxes,
Road User Charge (RUC) for New Zealand customers, Prestart Checkli for assigning the Prestart Checklist to the asset/vehicle and Attached Assets/Trailers is used to document any attached assets or vehicles.
Custom Fields (15) these labels can be changed in the settings by searching 'vehicle spare field' under System Parameters.

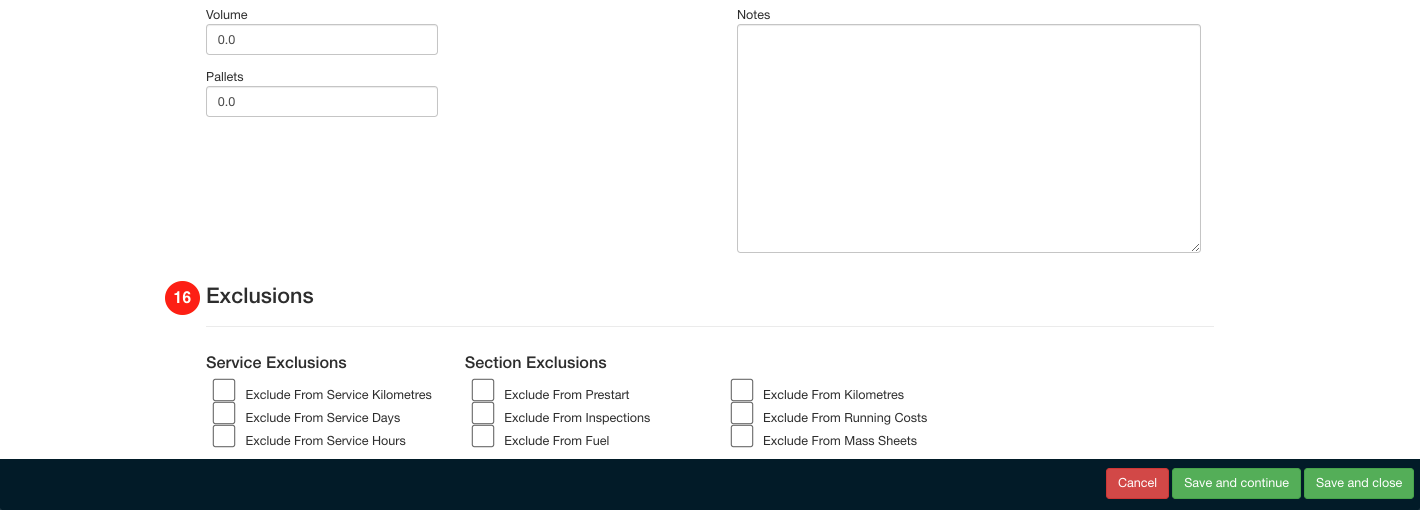

Exclusions (16) Asset/Vehicle Exclusions are used to exclude the asset/vehicle from what has been listed; Service Miles/Kms, Service Days, or Service Hours, Prestarts, Inspections, Fuel, Mileage, Running Costs, or Mass Sheets.
Asset/Vehicle Record Overview - Settings Tab
Reminders Tab

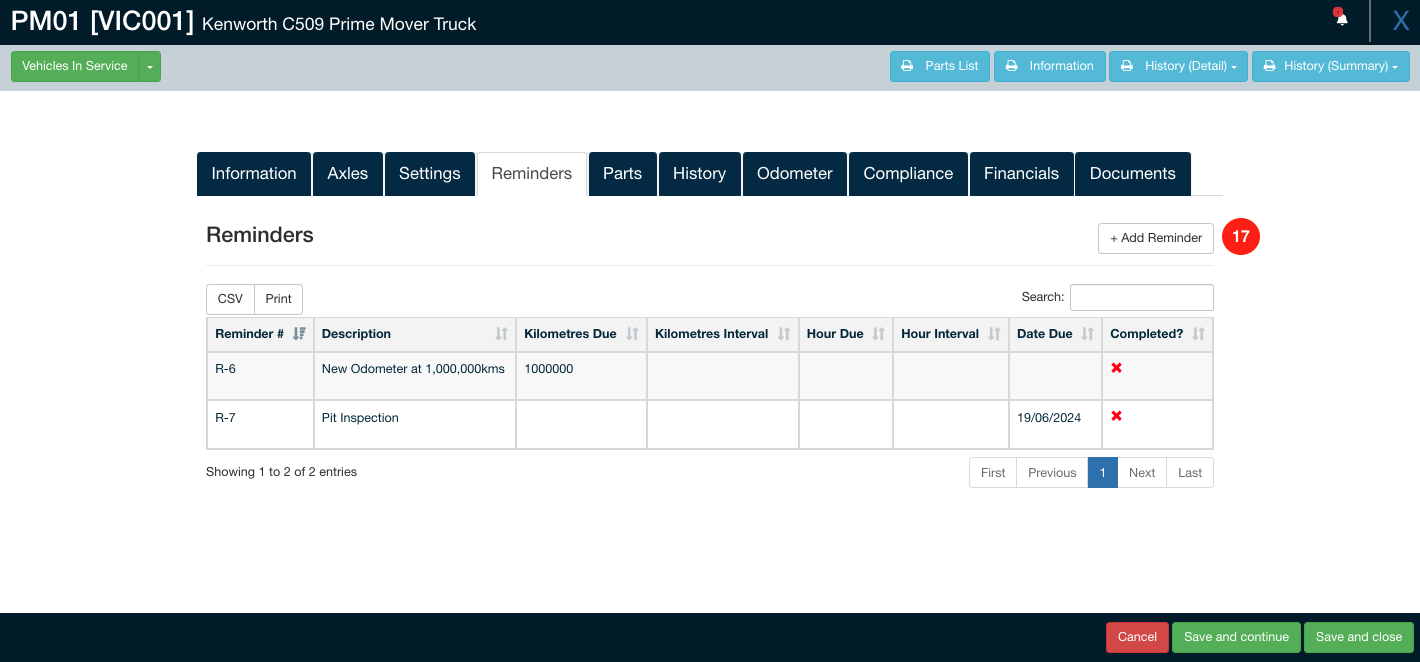

The Reminders Tab displays a list of open and closed Vehicle Reminders configured against the asset/vehicle you can also Add New Reminder(s) (17)
Asset/Vehicle Record Overview - Reminders Tab
Parts Tab

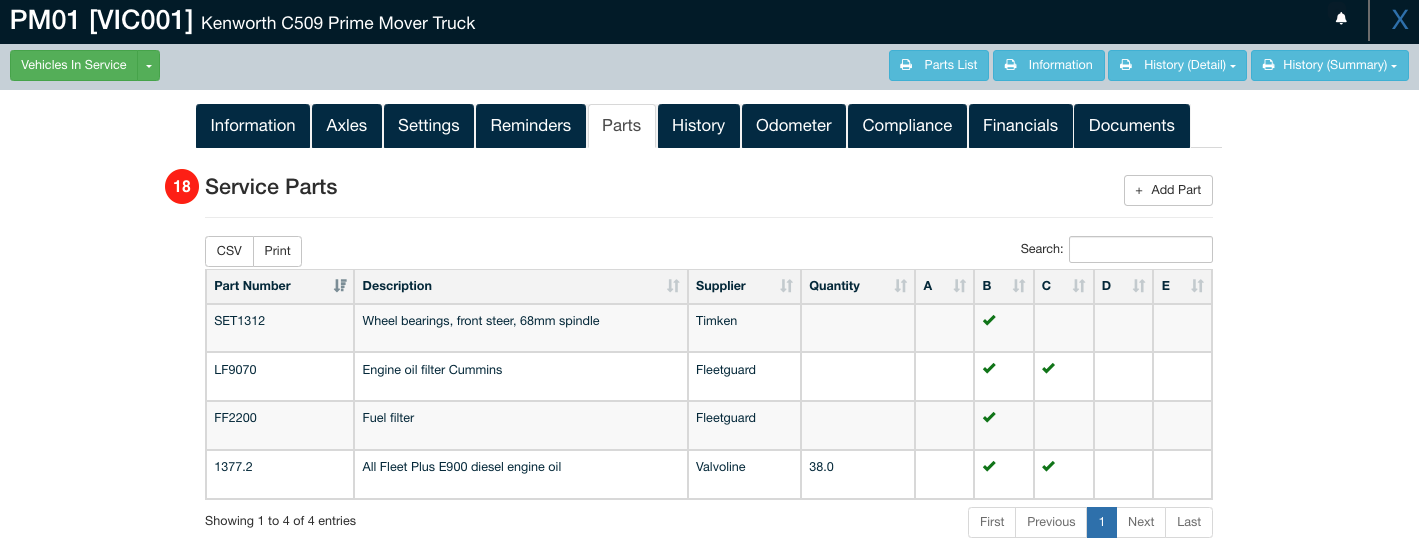

Service Parts (18) allows users to allocate specific parts to be prefilled on Services based on the Service Type. For further details on
Vehicle Service Parts

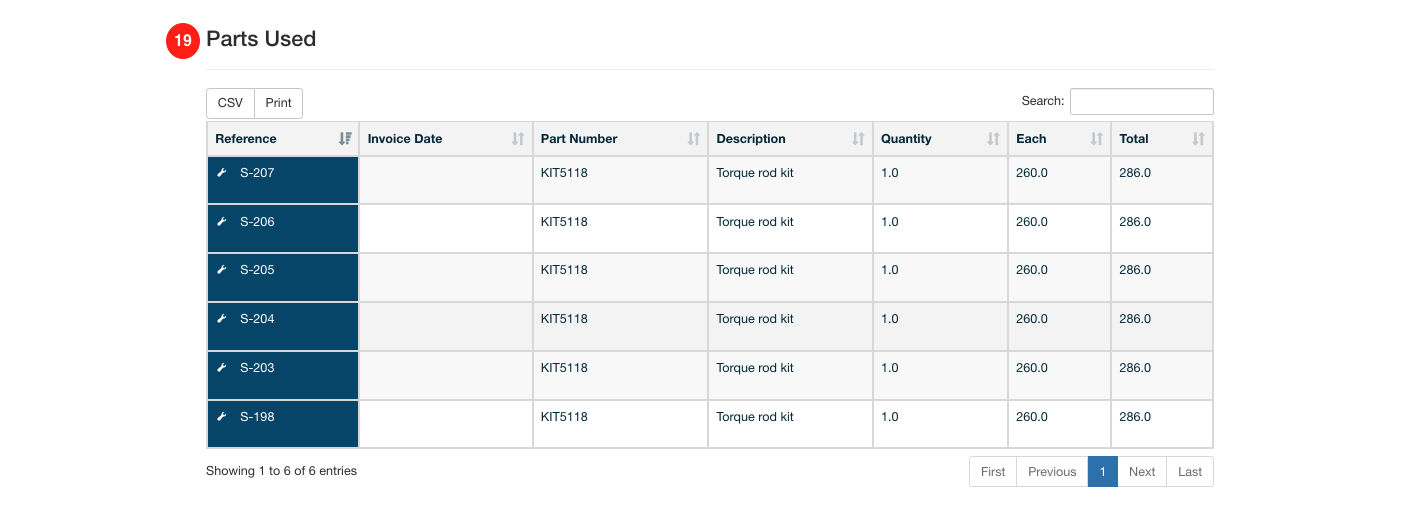

Parts Used (19) Parts Used table will display parts that have been utilised in work orders ( Service, Repairs, and Tyres. )

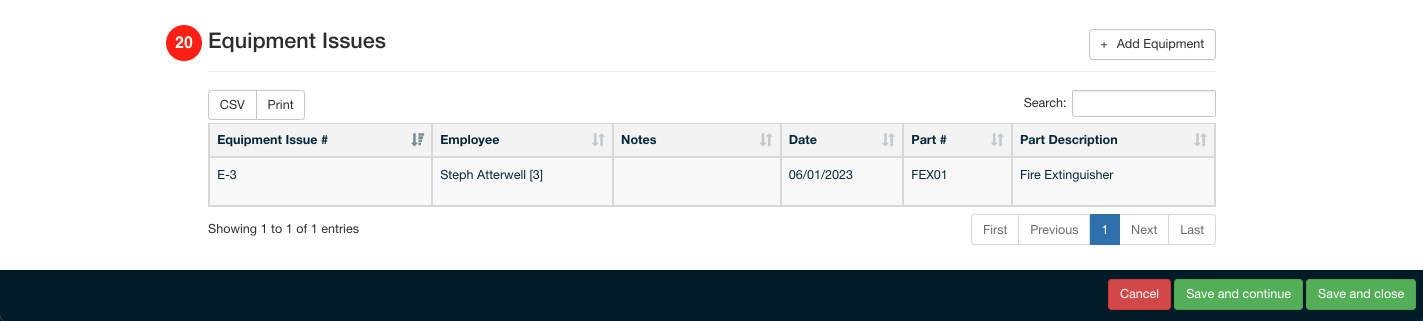

Equipment Issues (20) displays records in which the asset/vehicle has been allocated parts within
Equipment Issue records.
Asset/Vehicle Record Overview - Parts Tab
History Tab

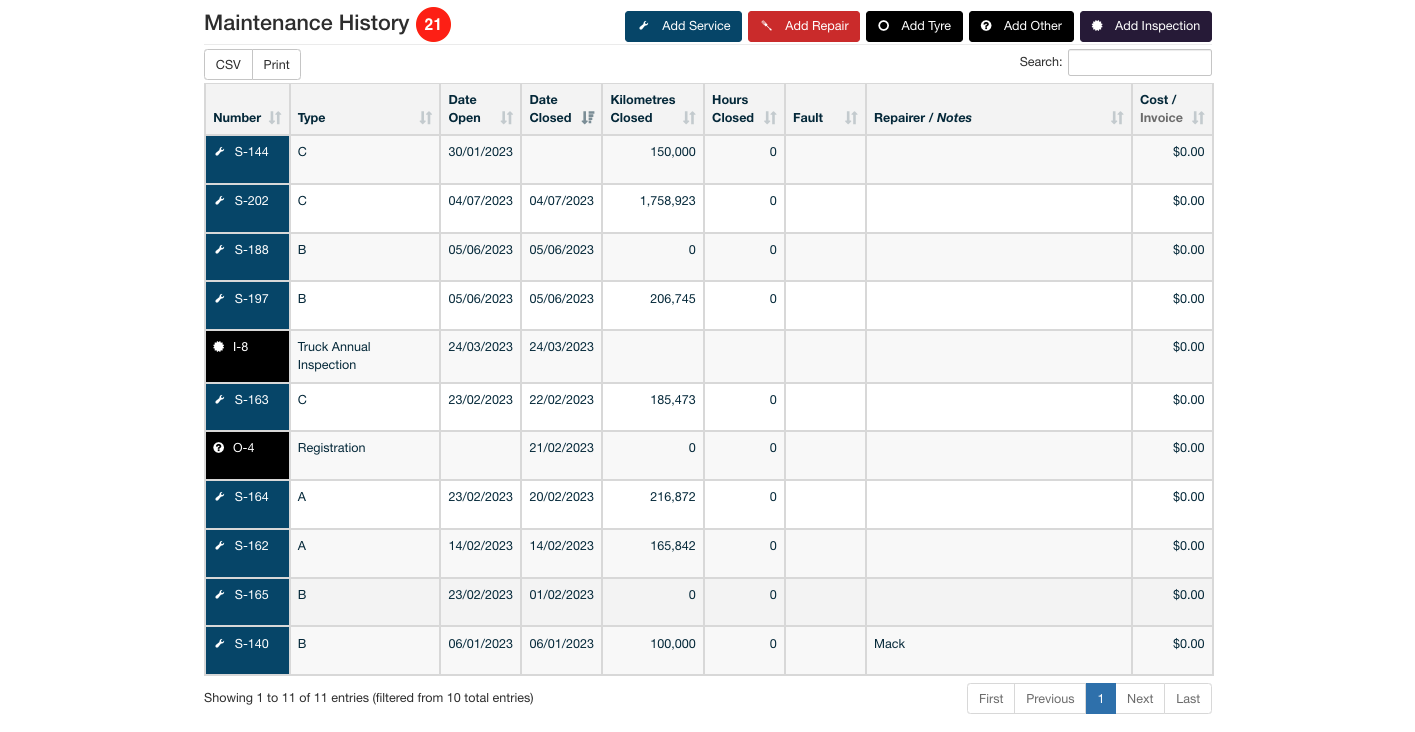

Maintenance History (21) displays all Service, Repair, Tyre, Other, and Inspection records created for the asset/vehicle. Cells shaded in green indicate the Service was completed on time, and red if the Service was overdue. Use the search field to quickly identify the last time warranty items such as alternators, power seeting pumps, turbos and radiators were replaced to avoid paying for items under warranty.

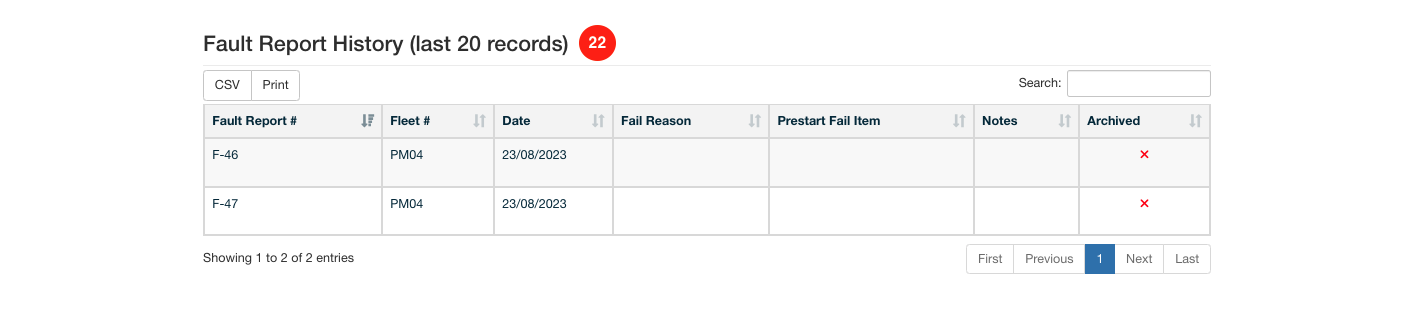

Fault Report History (last 20 records) (22) The Fault Report History table will display the last 20 records raised against the asset/vehicle. To view additional records navigate to the open or archieved Fault Reports pages.

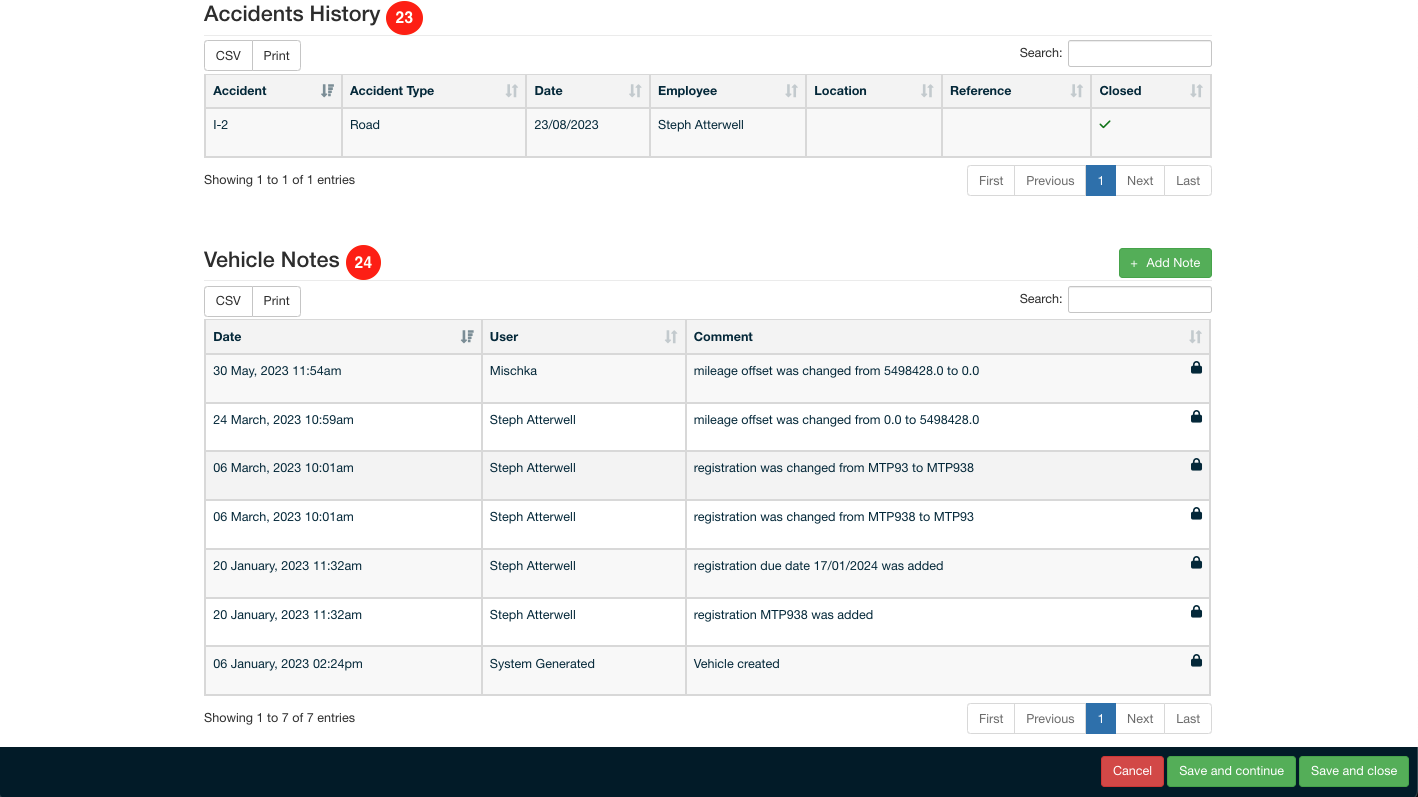

Accidents History (23) The Accident History table displays all Accident records raised against the asset/vehicle.
Vehicle Notes (24) Logs major changes or manual notes relating to the asset/vehicle including fleet number, registration, registration due and offsets.
Asset/Vehicle Record Overview - History Tab
Odometer Tab

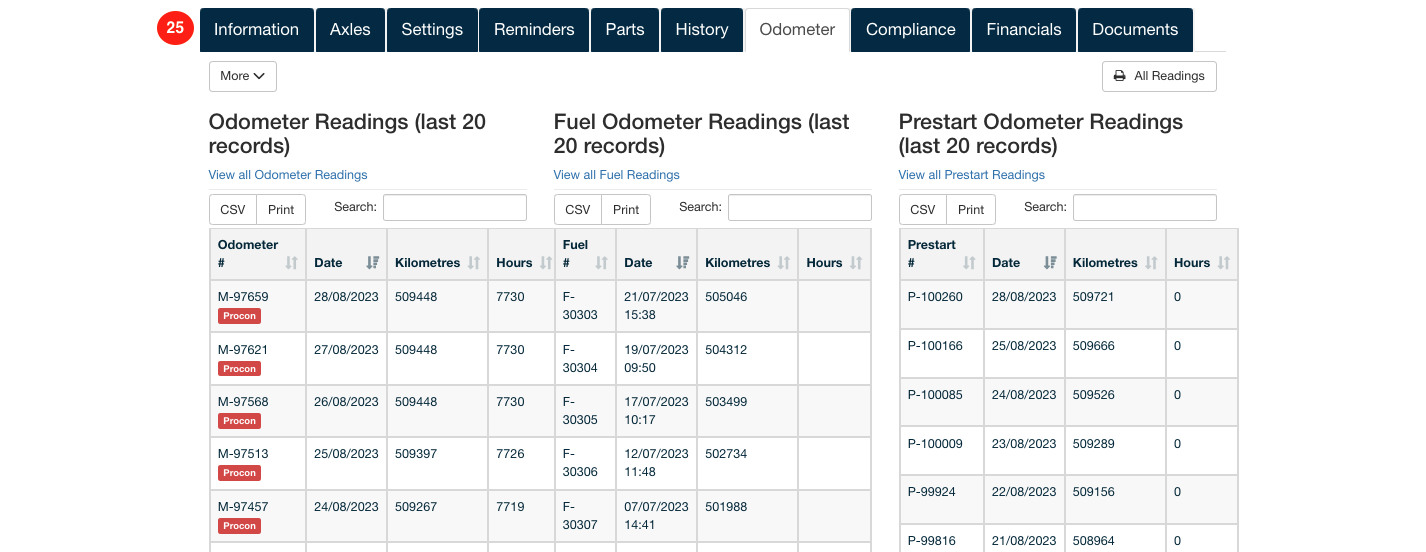

More (25) provides detailed information on an asset/vehicle's meter readings and service due including meter readings, last service km, last service hours, last service date.
Odometer Readings (last 20 records)
Fuel Odometer Readings (last 20 records)
Prestart Odometer (last 20 records)

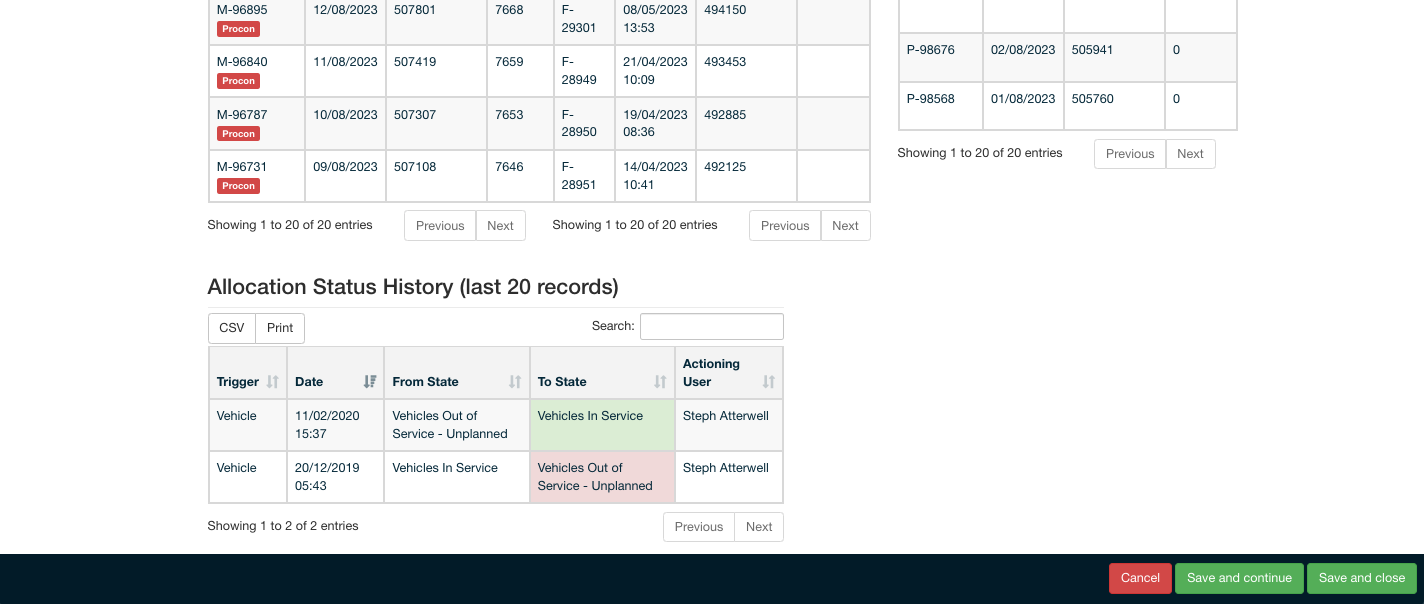

Allocation Status History (last 20 records)*
Asset/Vehicle Record Overview - Odometer Tab
Compliance Tab
Accreditation/Compliance (26) for Maintenance & Mass entry and exit dates, NHVAS label number, Intercept book number and Accreditation number.
Inspection Types (27) Users are able to assign
Inspection Types to vehicles such as annual inspections and hatch and vent tests.
Mass Limits (28) Users are able to configure
Mass Limits to be used when Prestart users create Load Sheets from the Prestart app.

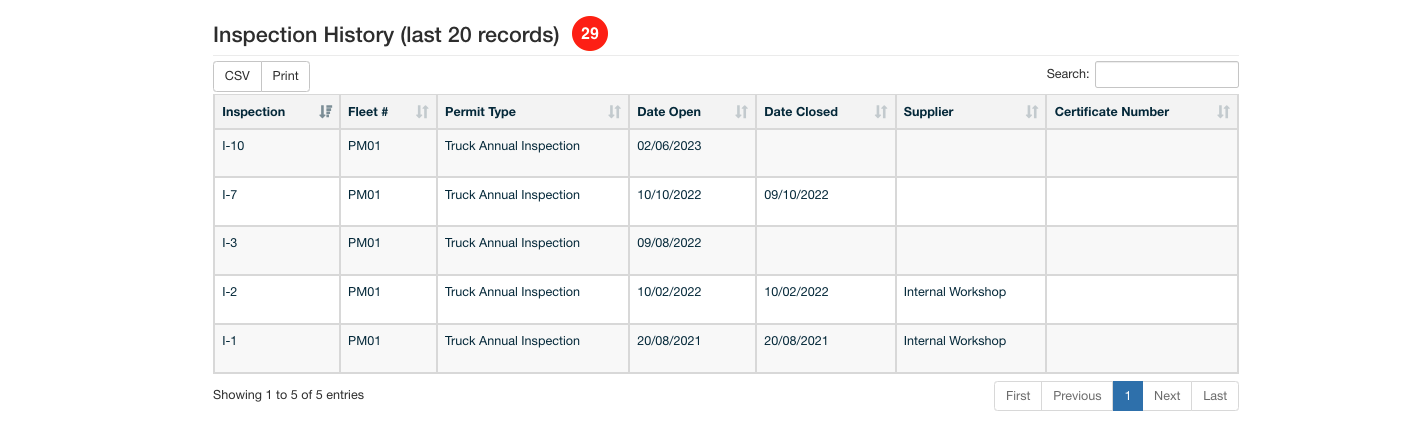

Inspection History (last 20 records) (29) Displays the last 20 Inspections created for the asset/vehicle.
Permit History (last 20 records) (30) Displays the last 20 Permits created for the asset/vehicle.
Asset/Vehicle Record Overview - Compliance Tab
Financials Tab
The Financials tab is only visible to Gearbox users with Manager or Admin permissions in the Maintenance module.

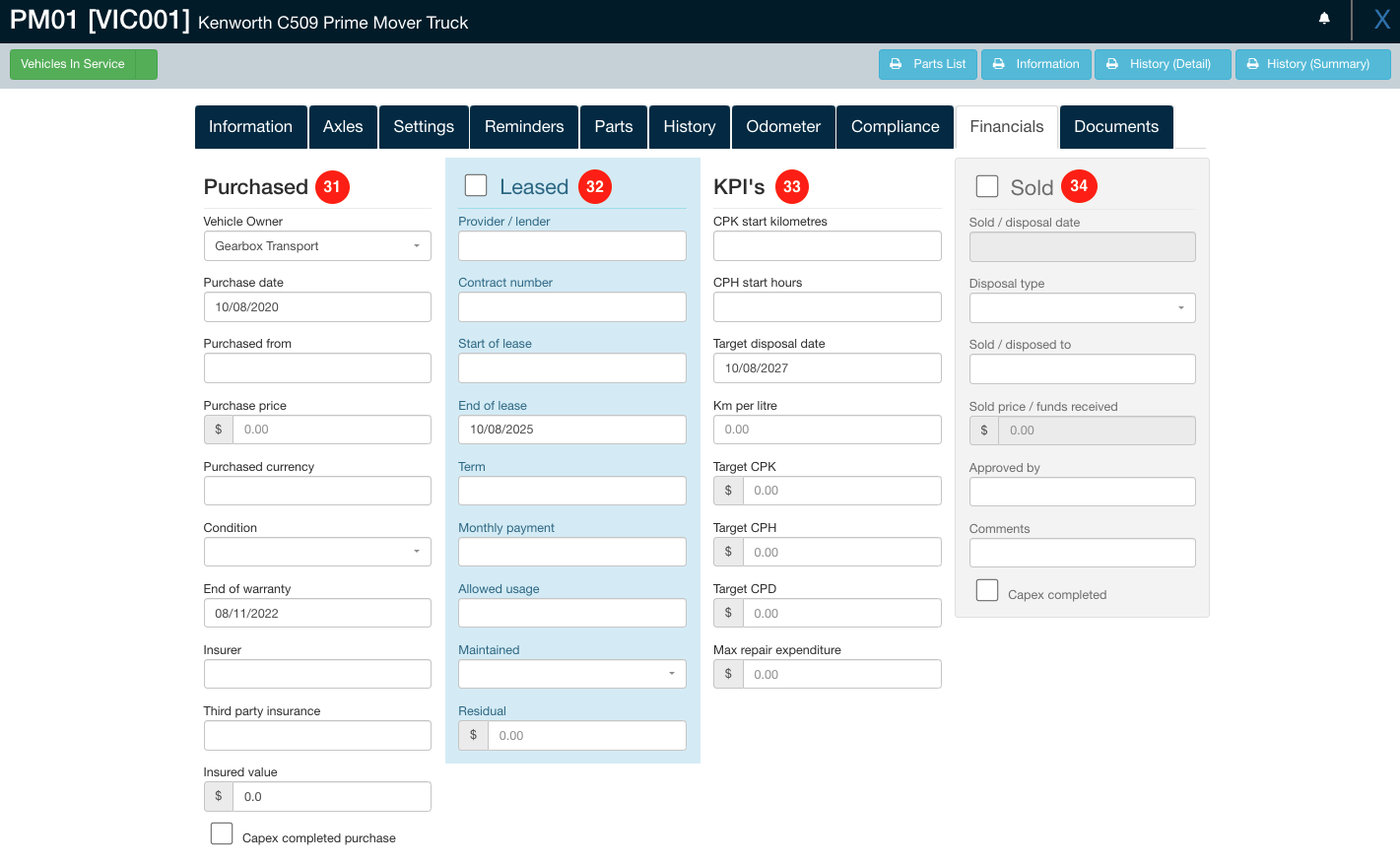

Purchased (31) The financials tab is used to document details regarding the purchase/aquisition of the asset/vehicle; Purchase Date, Purchase From, Purchase Price, Purchase Currency, Condition, End of Warranty, Insurer, Third Party Insurance, Insurance Value, Capex Completed Purchase
Leased (32) The following fields are used to document details regarding if the asset/vehicle is leased; Leased, Contract Number, Start of Lease, End of Lease, Term, Monthly Payment, Allowed Usage, Maintained, Residual
KPI's (33) CPK (Charges Per Km) Start Mileage, CPH (Charges Per Hour) Start Hours, Target Disposal Date, Kms Per Litre, Target CPK (Charges Per Km), Target CPH (Charges Per Hour), Target CPD (Charges Per Day), Max Repair Expenditure
Sold (34) These fields are used to remove asset/vehicles from your fleet; Sold, Sold/Disposal Date, Disposal Type, Sold/Disposed To, Sold Price/Funds Received, Approved By, Comments, Capex Completed

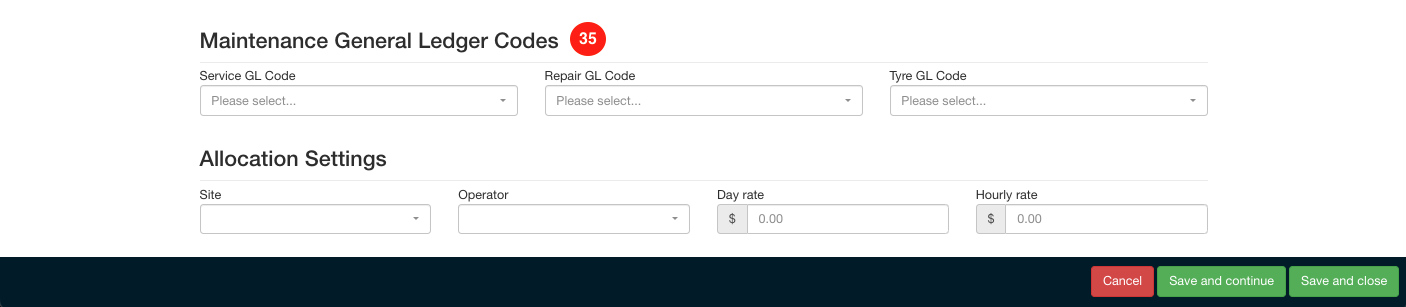

Maintenance General Ledger Codes (35) These are used for account purposes; Service GL Code, Repair GL Code, Tyre GL Code. These values will copy down to a Work Order and Purchase Order when a vehicle is nominated.
Asset/Vehicle Record Overview - Financials Tab
Documents Tab

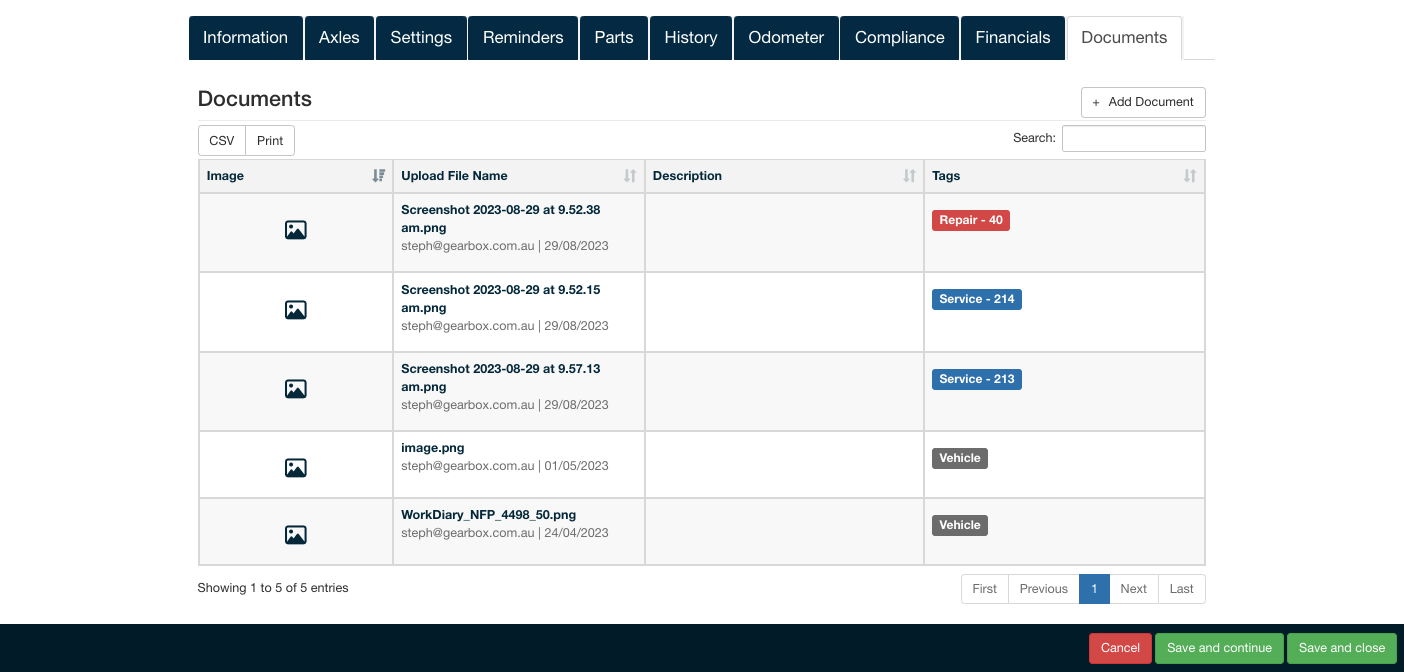

This tab displays any documents uploaded to or tag against the asset/vehicle.
Asset/Vehicle Record Overview - Documents Tab
