Assigning Mass Limits

Overview

The Prestart application allows drivers to enter axle group weights in Load Sheets. For Prestart to alert of overloads in GML, CML, HML, etc., the Vehicle Mass limits must be configured in Gearbox first.

Adding a Mass Limit

GML mass limit must be configured for all Mass Accredited vehicles. CML and HML cannot be used without a valid GML record.

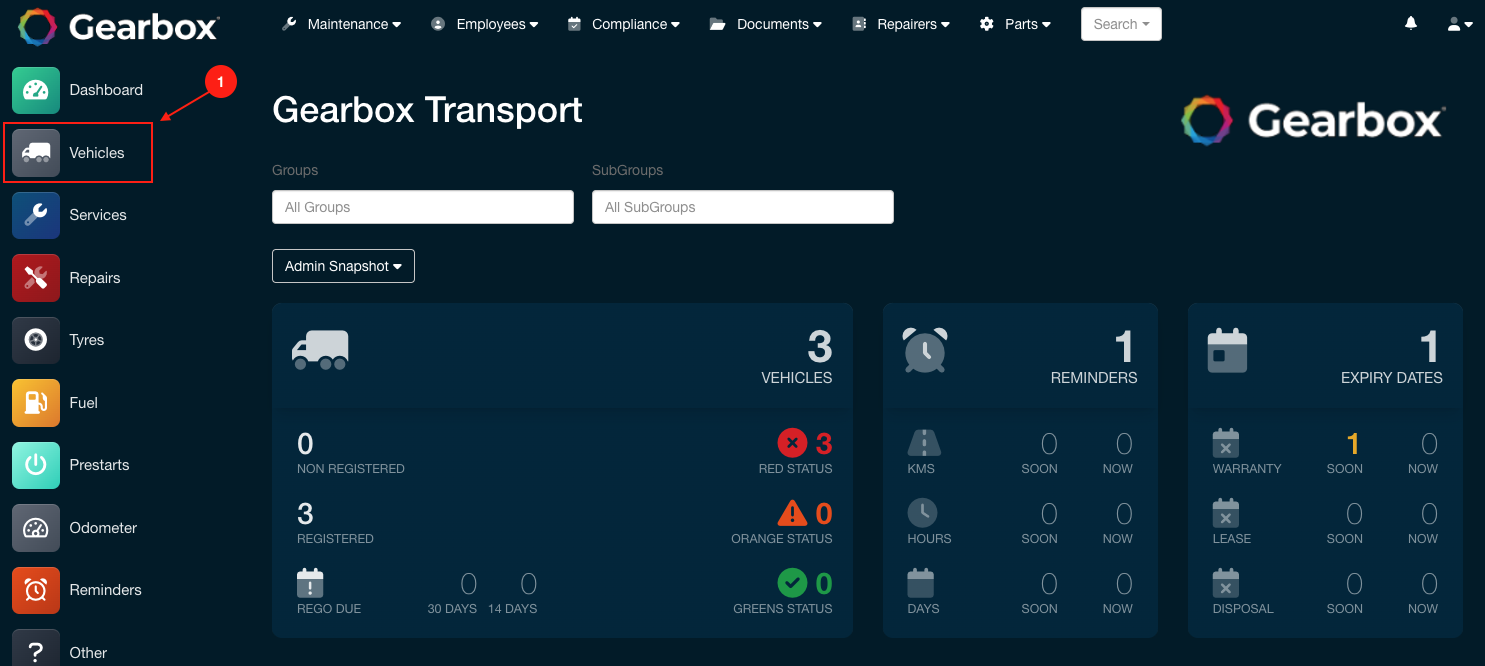

1. Click on Vehicles (1)

Assigning Mass Limits - Vehicles

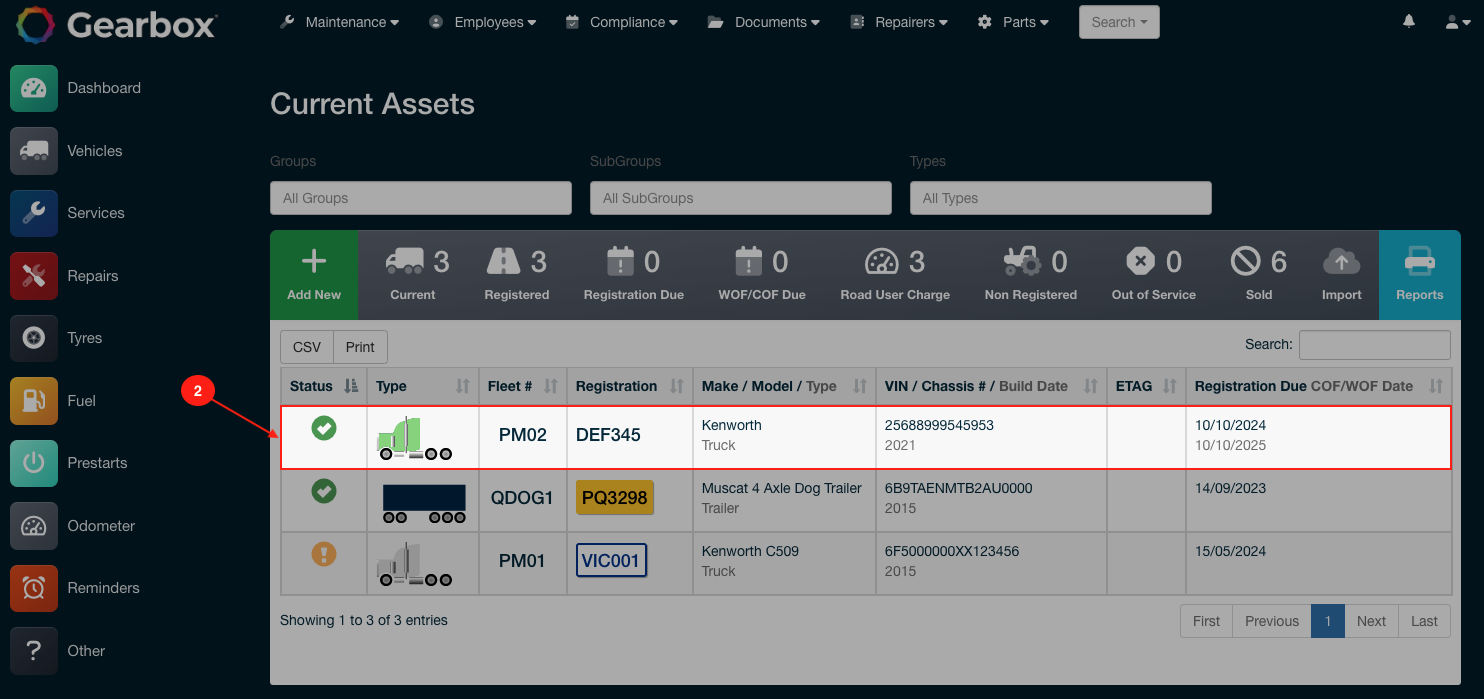

2. Click on the Vehicle (2) you wish to assign a mass limit for

Assigning Mass Limits - Current Assets

3. Click on the Compliance (3) tab, then click on Assign Mass Limit Type (4)

Assigning Mass Limits - Vehicle Compliance

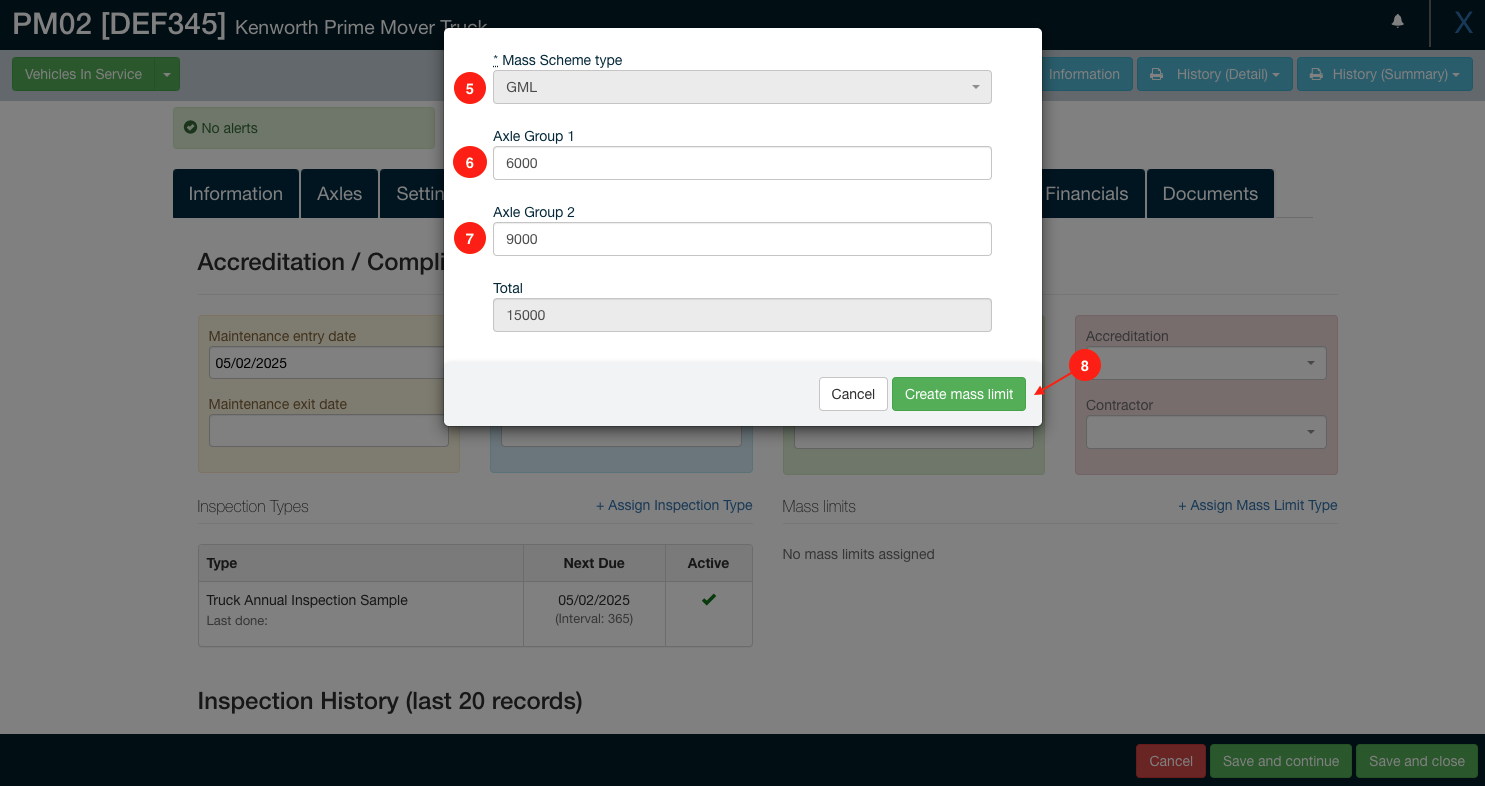

4. The first Mass Limit MUST be GML (5). Enter your Axle Group 1&2 (6,7), then click Create Mass Limit (8)

Assigning Mass Limits - Assigning Mass Limit Types

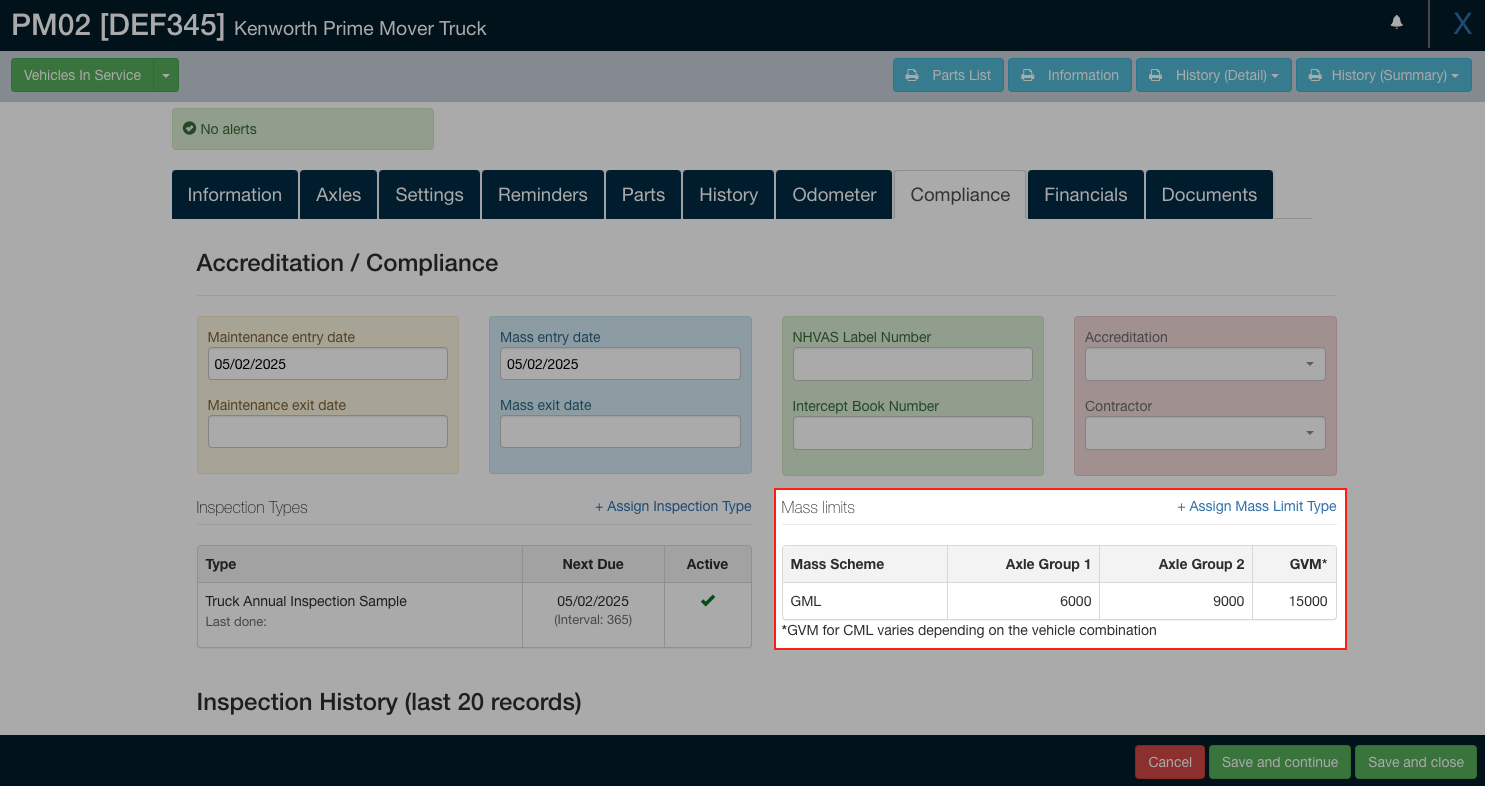

5. Once all Mass Limits are assigned, your vehicle should look similar to the one below (assuming the only applicable Mass Limit is GML).

Assigning Mass Limits - Mass Limits
