Navman Integration

Navman Integration

Overview

The TN360 Integration will import odometer and hour readings nightly. In order to enable TN360 integration speak to your Account Manager or Hamish Bertenshaw via email hamish.bertenshaw@teletracnavman.com for your Username, Password and TN360 token details. The steps below outline how to enable your integration and verify the readings.

You must have an active Teletrac Navman account and Gearbox administrative privilages to complete the below steps.

Integrating with Navman TN360

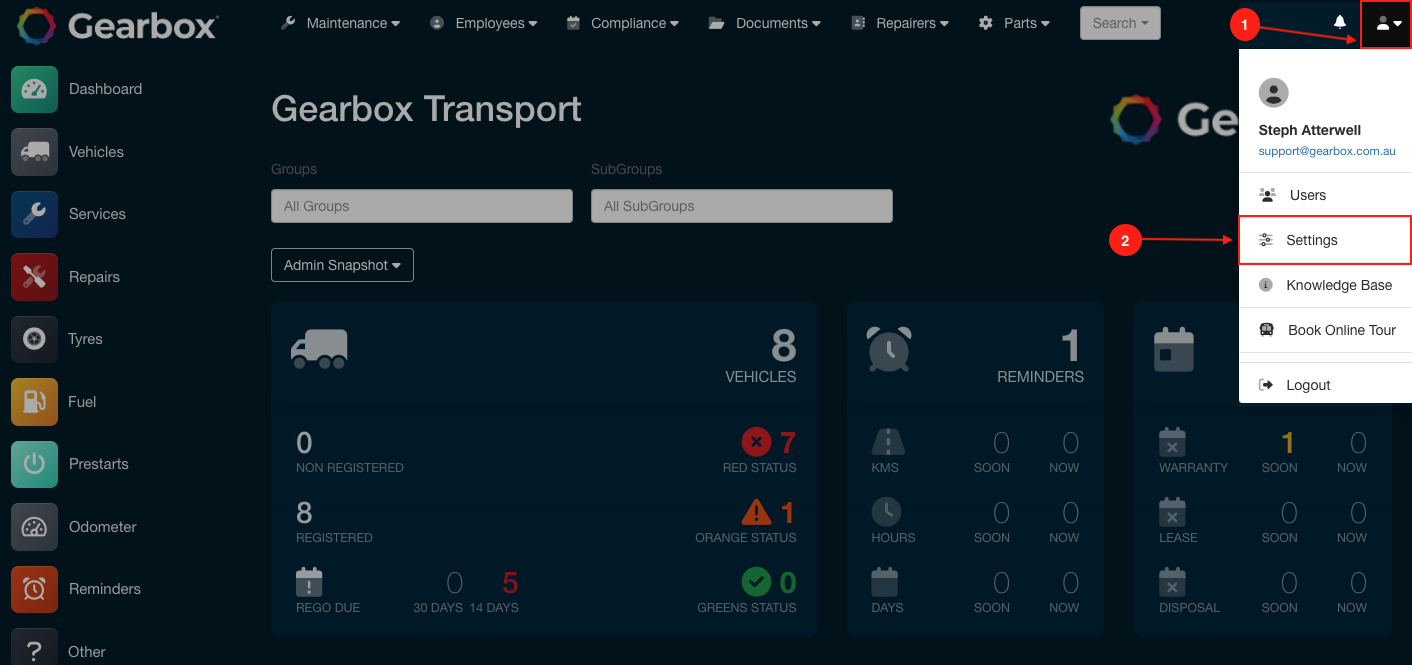

1. Click on your User Icon (1), then click on Settings (2)

Navman Integration - User Icon

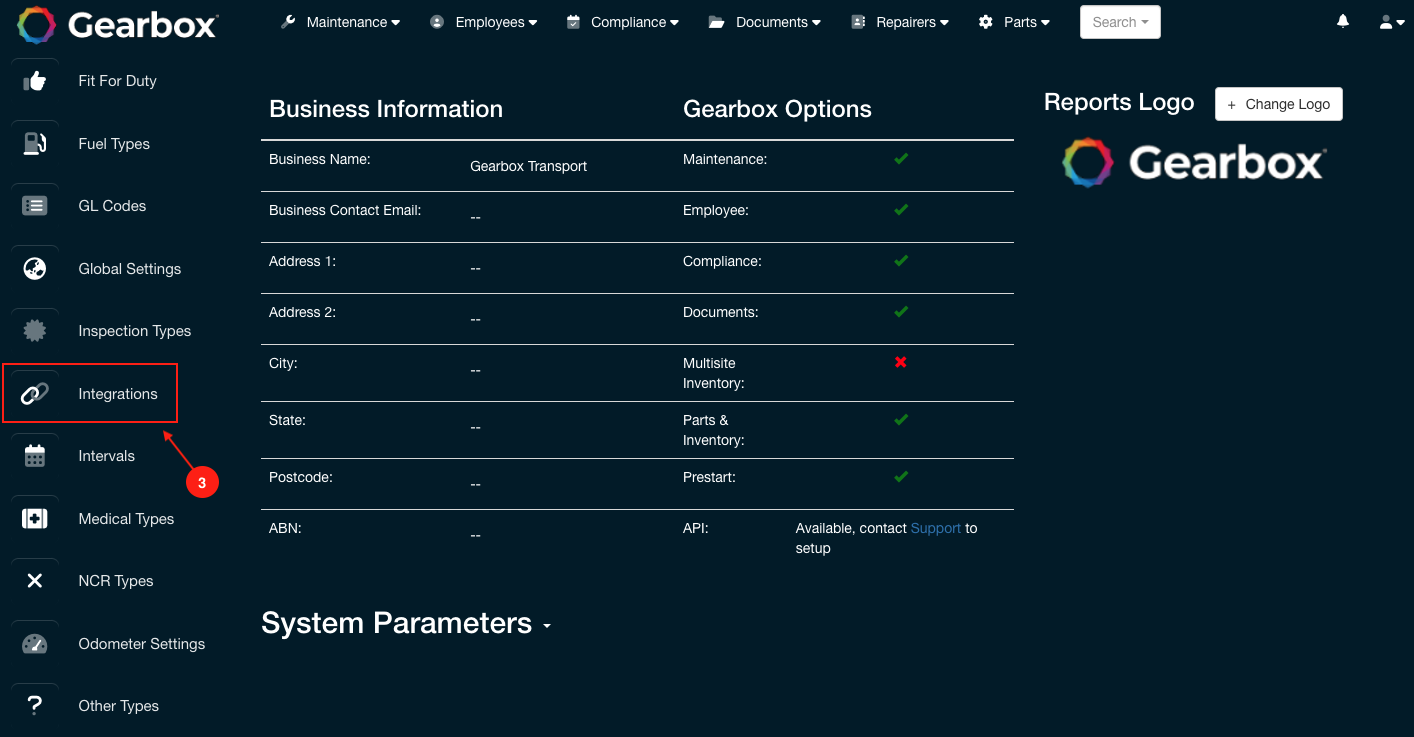

2. On the left-hand side of the screen, scroll down and click on Integrations (3)

Navman Integration - Integrations

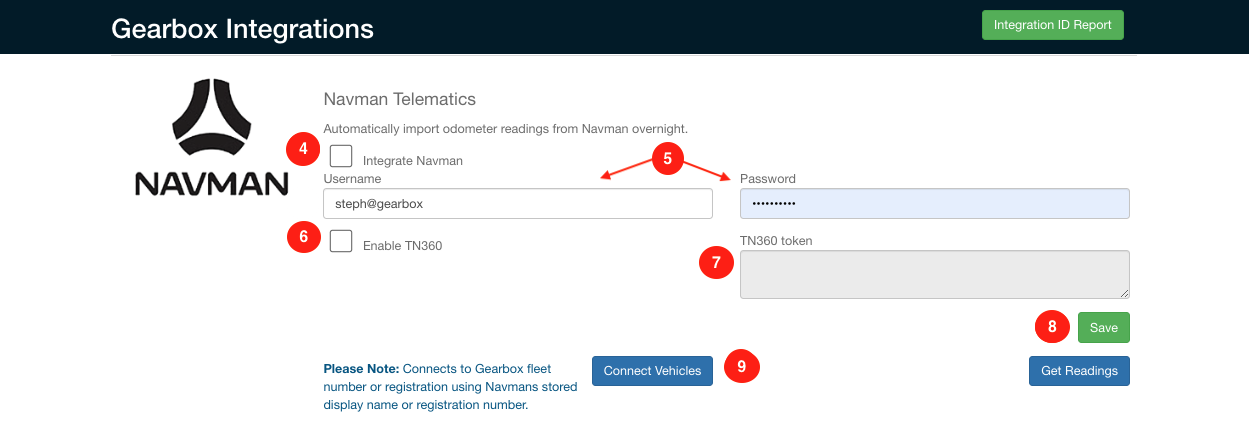

3. Scroll down until you see Navman, click Integrate Navman (4), click Enable TN360 (5), enter your TN360 Token (7) given by Navman, click Save (8), then click Connect Vehicles (9)

Navman Integration - Navman Telematics Login


This will connect assets based on the fleet number or registration in Gearbox. The fleet number or registration in Gearbox must match the display name or registration number in Navman. Gearbox will automatically attempt to add the new ID to the assets based on the information from Navman. Gearbox will email a CSV file detailing the results of the connection.
